Please find below our range of VNWA Packages for VNWA 3 and 3EC
Both models offer the same accuracy, measurements and range. However, the VNWA 3EC can take One Port (S11) and Two Port (S12) measurements in one sweep instead of 2 sweeps, and is also fitted with an external clock in/out connector.
The new 3SE Automatic 2 Port VNWA Models are listed here
A wide range of VNWA Accessories are available to buy separately from our Webshop.
DG8SAQ VNWA 3 and 3EC with Accessories

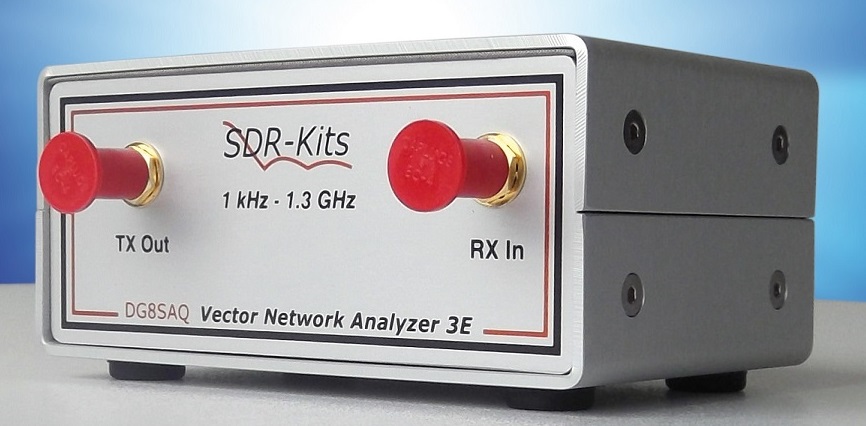

VNWA 3
Designed by Thomas Baier DG8SAQ, VNWA Driver and Software now runs on
all recent Windows 64 bit and 32 bit Operating Systems, including
Windows 11, 10, 8.1 & 8, Windows 7 and Windows Vista.
VNWA 3 in anodized enclosure - fully assembled and tested - Refurbished in as new condition with full warranty.
3pcs Amphenol Connex Calibration Kit with VNWA Amphenol Calibration Kit information sheet
20cm long SMA Plug (Male) to SMA Plug (Male) RG223 Thru Cable for thru calibration between TX and RX ports, fitted with Spinner Grips
Good Quality USB Cable fitted with ferrite
VNWA 3 "Getting Started Manual
24 Month 'Return to Base' Warranty
VNWA 3EC Sorry, out of stock until further notice
Designed by Thomas Baier DG8SAQ, VNWA Driver and Software now runs on all recent Windows 64 bit and 32 bit Operating Systems, including Windows 10, 8.1 & 8, Windows 7 and Windows Vista.
-
VNWA 3EC with fitted expansion board and external clock connector in anodized enclosure - fully assembled and tested
-
3pcs Amphenol Connex Calibration Kit with VNWA Amphenol Calibration Kit information sheet
-
20cm long SMA Plug (Male) to SMA Plug (Male) RG223 Thru Cable for thru calibration between TX and RX port, fitted with Spinner Grips
Good Quality USB Cable fitted with ferrite
VNWA 3EC "Getting Started Manual"
-
24 Month 'Return to Base' Warranty
DG8SAQ VNWA 3 and 3EC in Presentation Case

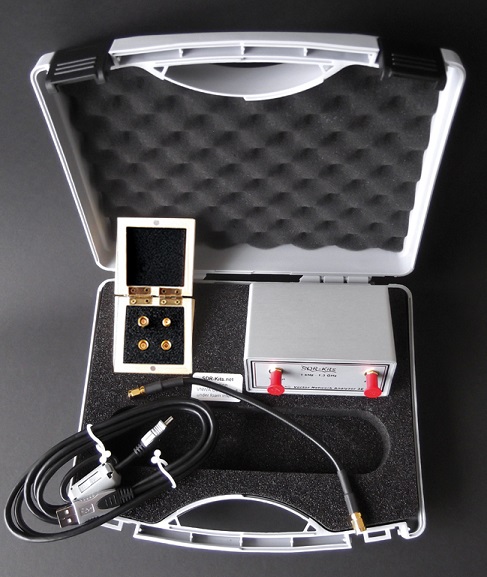

VNWA 3EC in Presentation Case with 4pcs Calibration Kit of Amphenol Parts
Sorry, out of stock until further notice
Designed by Thomas Baier DG8SAQ, VNWA Driver and Software runs on all recent Windows 64 bit and 32 bit Operating Systems, including Windows 11, 10, 8.1 & 8, Windows 7 and Windows Vista.
VNWA 3EC with fitted expansion board & external clock connector in anodized enclosure - fully assembled and tested
- Presentation Storage box
- 4 pcs SDR-Kits
SMA Calibration Kit of Amphenol Connex parts supplied in natural wooden
box with anodised gold-coloured aluminium nameplate containing:
-1 pc SMA Plug (Male) 50 Ohm load
-1 pc SMA Plug (Male) 0 Ohm short
-1 pc SMA Jack - Jack (Female-Female) Open connector /Adapter
-1 pc SMA Plug - Plug (Male-Male) open connector /Adapter
20 cm long SMA Plug (Male) to SMA Plug (Male) RG223 Thru Cable for thru calibration between
TX and RX ports, fitted with Spinner GripsGood Quality USB Cable fitted with ferrite core fitted for interference suppression
VNWA 3EC "Getting Started" booklet
24 months return to base Warranty

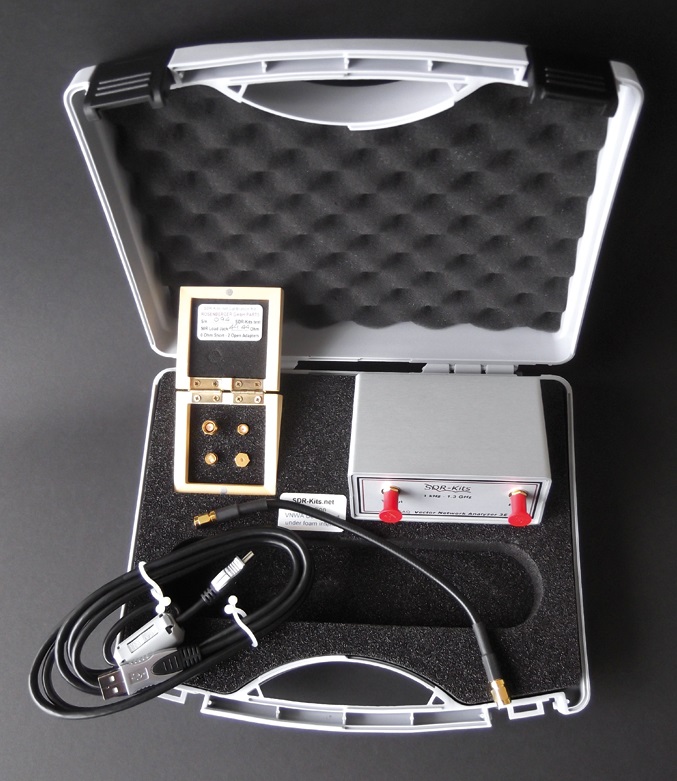

VNWA 3EC in Presentation Case with 4pcs Calibration Kit of Premium 12 GHz Parts
Sorry, out of stock until further notice
Designed by Thomas Baier DG8SAQ, VNWA Driver and Software runs on all recent Windows 64 bit and 32 bit Operating Systems, including Windows 11, 10, 8.1 & 8, Windows 7 and Windows Vista.
VNWA 3EC with fitted expansion board & external clock connector in anodized enclosure - fully assembled and tested
- Presentation Storage box
- 4 pcs SMA SOL Calibration parts rated for use up to 12 GHz supplied in wooden
box with anodised gold-coloured aluminium nameplate containing:
-1 pc 50 Ohm 1 Watt Jack (female) load
The actual value of the load supplied is measured and recorded by SDR-Kits on label inside the calibration box
-1 pc 0 0hm Short Jack (female)
-1 pc SMA Jack - Jack (Female-Female) Open connector & Adapter
-1 pc SMA Plug - Plug (Male-Male Open) connector & Adapter
20cm long SMA Plug (Male) to SMA Plug (Male) RG223 Thru Cable for thru calibration between TX and RX ports, fitted with Spinner Grips
Good Quality USB Cable fitted with ferrite
VNWA 3EC "Getting Started" booklet
24 months return to base Warranty
VNWA 3 in Presentation Case with 4pcs Calibration Kit of Amphenol Parts Refurbished as New with full Warranty
Sorry, out of stock until further notice
Designed by Thomas Baier DG8SAQ, VNWA Driver and Software runs on all recent Windows 64 bit and 32 bit Operating Systems, including Windows 11, 10, 8.1 & 8, Windows 7 and Windows Vista.
VNWA 3 in anodized enclosure - fully assembled and tested
- Presentation Storage box
- 4 pcs SDR-Kits
SMA Calibration Kit of Amphenol Connex parts supplied in natural wooden
box with anodised gold-coloured aluminium nameplate containing:
-1 pc SMA Plug (Male) 50 Ohm load
-1 pc SMA Plug (Male) 0 Ohm short
-1 pc SMA Jack - Jack (Female-Female) Open connector /Adapter
-1 pc SMA Plug - Plug (Male-Male) open connector /Adapter
20 cm long SMA Plug (Male) to SMA Plug (Male) RG223 Thru Cable for thru calibration between TX and RX ports, fitted with Spinner Grips
Good Quality USB Cable fitted with ferrite
VNWA 3E "Getting Started" booklet
24 months 'Return to Base' Warranty
