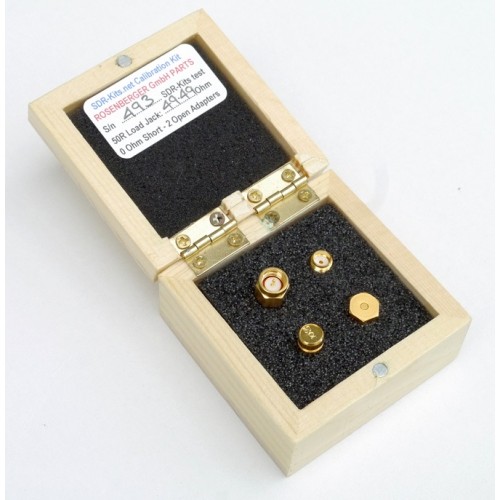

4 pcs Female SMA Calibration kit by SDR-Kits in Wooden Box with Custom foam interior to store Calibration Parts, fitted anodised gold-coloured aluminium nameplate to top and with Internal vinyl label with serial number and value of SMA 50R Load supplied as measured by SDR-Kits.

Supplied with 4 pcs Premium SMA SOL Calibration parts rated for use up to 12 GHz

• 1 pc 50 Ohm 1 Watt Jack (female) load


  The actual  value of the Rosenberger  load supplied is measured and recorded by SDR-Kits on label inside the calibration box and the serial number

• 1 pc 0 0hm Short Jack (female)


• 1 pc SMA Jack - Jack (Female-Female) Open connector & Adapter


• 1 pc SMA Plug - Plug (Male-Male Open) connector & Adapter


Supplied with New updated VNWA information sheet for Premium 12 GHz Female Calibration Parts by Kurt Poulsen OZ7OU (Published October 2014)

Download Information on how the new improved Calibration Standards were measured by Kurt Poulsen OZ7OU

Further information on Premium 12 GHz Calibration Parts (including German or Danish language version of Cal standards) http://hamcom.dk/VNWA

Note: SDR-Kits is taking all reasonable steps when measuring and recording the actual value of the Load Resistor. This calibration kit should only be used however for "Indication Purposes not for final testing" . See SDR Kits Ordering Terms and Conditions
