85 MHz Panoramic Adapter Board (Assembled)
for: TS2k HF 1st IF, TS 570, TS850, ICR70/75
- Designed by hupRF.
- The Panoramic Adapter Tap Board (PAT Board) is an assembled Printed Circuit Board, which connects the IF signal from a Radio Receiver or Transceiver to the Antenna Input of the SDRplay RSP1A, RSP2 or RSP2pro Software Defined Radio (SDR) Receiver, or another type of SDR Receiver covering the IF Frequency in question.
- The PAT Board allows for the display of Received Signals on the Computer screen connected to the SDRplay Receiver.
- You can also use the SDRplay as a Second Receiver in addition to the Frequency displayed on the main Dial of the Radio.
- Choice of two installation kits based on radio type
For more information on the PAT board, supported Radios and appropriate installation kits, check out the following document: Which PAT for your rig?
More information on our PAT Board WebpagePlease note:
- Before ordering a PAT board, review the Installation Instructions for your particular Radio on the hupRF Website
Make sure you are comfortable to carry out the installation, which may void the warranty of your radio.
aware that if you tap the 1st IF Filter after the 1st IF roofing
Filter, the Panoramic Adapter Bandwith will be limited to the bandwidth
of the 1st IF Roofing filter fitted on your Radio. If you tap the 1st
IF before the 1st IF roofing Filter then you may obtain much wider
Displays of 200 KHz or possibly more.
- Use of 2nd Receiver
function requires tapping the IF Signal before the 1st IF Roofing Filter
in conjunction with the HDSDR Application Software and requires
specialist settings in the HDSDR Options menu as shown in the you tube
video by K4AX. It may also require a PC to CAT Interface Adapter to control your Main Radio from the Computer used.
To install this board you need to open up your radio and make
connections to the signal path and power supplies. You also need to
either install a connector or route a cable out through the rear panel.
This may invalidate any warranty on your radio, and no liability is
accepted by SDR-Kits or hupRF for any damage caused while installing or
operating this product in your rig.

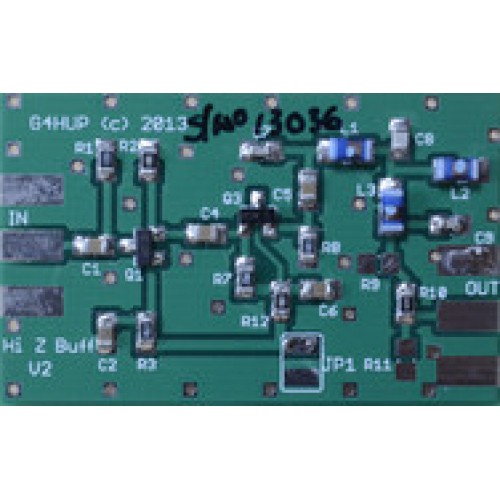

Panoramic Adapter Tap (PAT85M) Board - Assembled - for 85 MHz IF Transceivers TS2k HF 1st IF, TS 570, TS850, ICR70/75
- Product Code: PAT85M - 85 MHz Panoramic Adapter Board Assembled
- Availability: In Stock
- incl VAT: £14.40
- Indicative prices in EURO: €13.80, incl VAT: €16.56
- Indicative prices in USD $15.72
Tags: PAT Boards
